Pile Croppers

National Pile Croppers are the safest and most efficient equipment in the market to cut your concrete or pre-cast piles with a finish quality unachieved by other brands.

MAKE MONEY CUTTING YOUR PILES WITH NATIONAL PILE CROPPERS!

CFA Cropper on a pile

CFA Cropper

Traditional linked modular cropper which can be adjusted to suit required pile sizes.
Adjustments of 100mm at a time can be achieved easily by adding a half link without any hydraulic interference.

Key Features
  • The provided lifting frame Has the advantage of minimal restriction.
  • The CFA Cropper will cut circular augured concrete piles from 300mm – 1200mm diameter.
  • Its modular design allows it to be adjusted to suit different pile sizes on site.
Spec Sheets

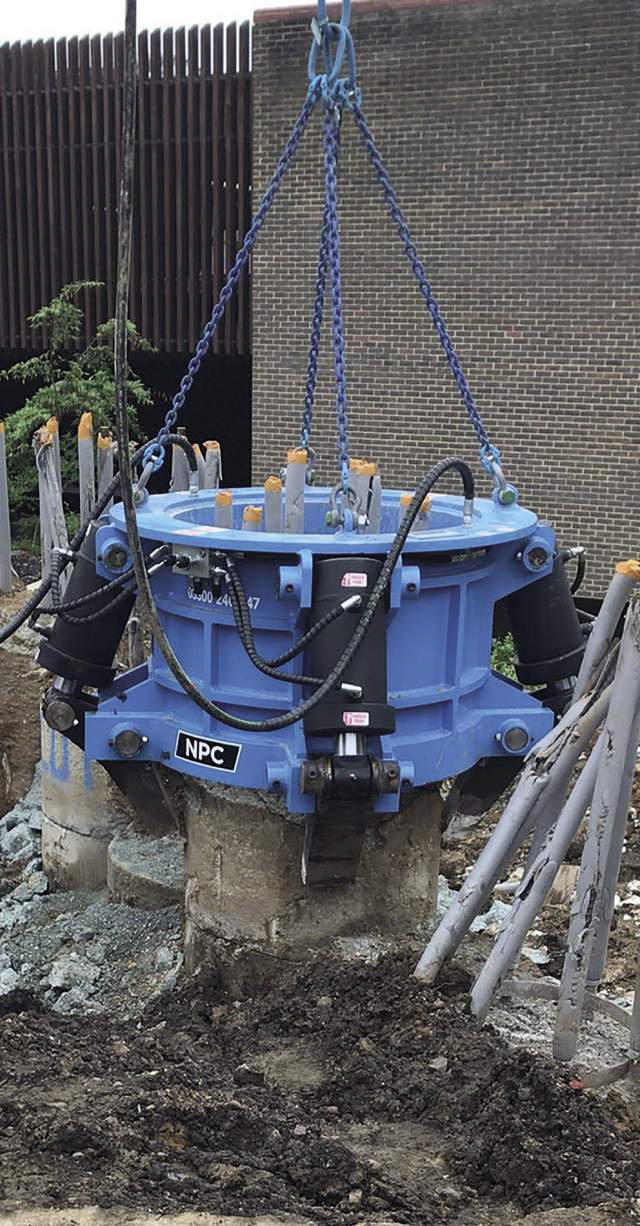

Quad 300 1200 pile cropper.

Quad 300-1200 Cropper

Our Quad Croppers are designed to be used for the reduction of augured (round) piles up to 1200mm diameter. The cropper will also hold the cut pile section safely for removal to a designated safe area.
Best utilised on piles with ‘debonded’ reinforcement bars.

Key Features
  • Four powerful synchronised rams
  • Small footprint makes it good for tight spaces.
  • The Quad cropper can also be used to reduce contiguous and secant piled walls with spacing as close as 100mm.
Spec Sheets

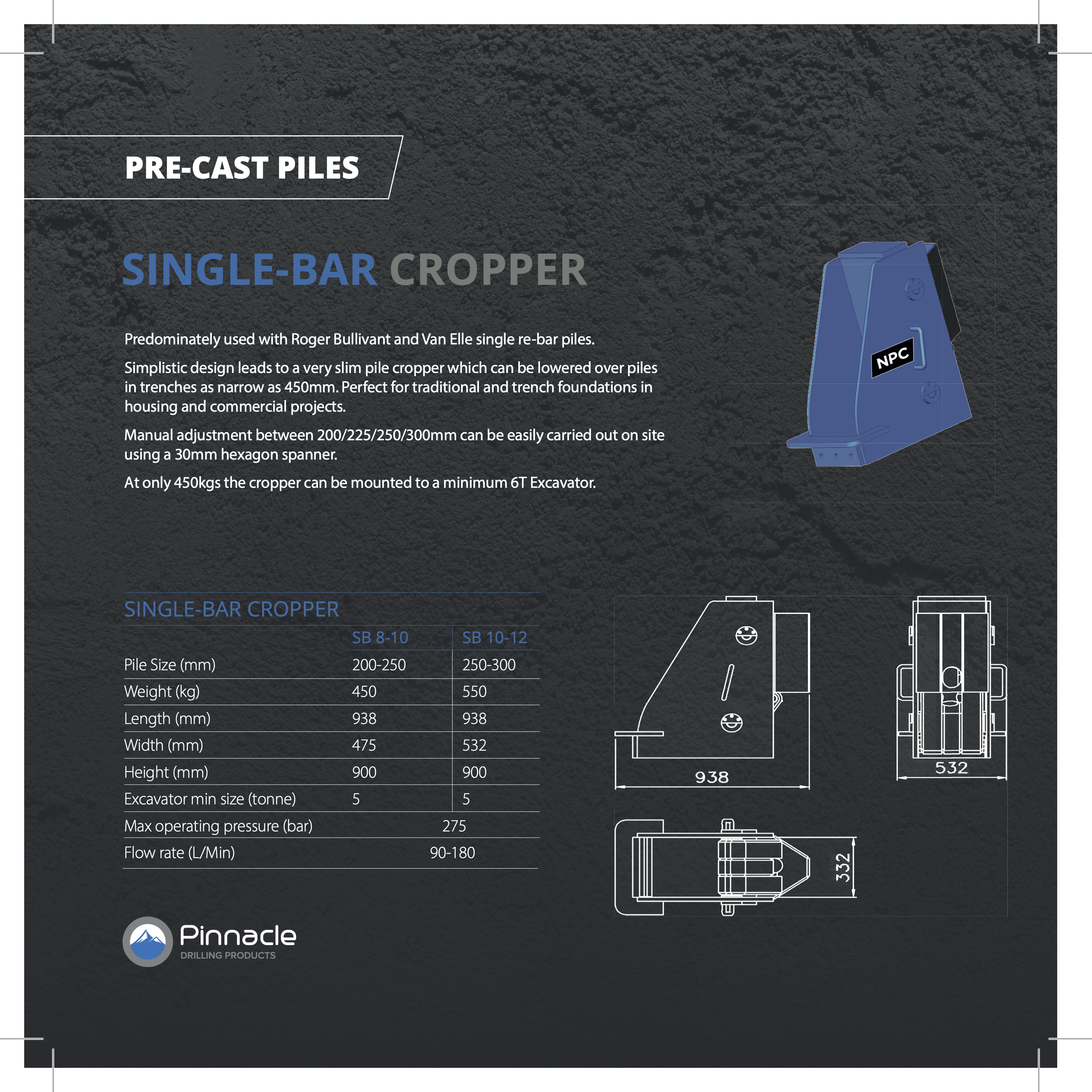

Single bar cropper cropping

Single-Bar Cropper

Predominately used with Roger Bullivant and Van Elle single re-bar piles. Perfect for traditional and trench foundations in housing and commercial projects.

Key Features
  • Simplistic design leads to a very slim pile cropper which can be lowered over piles in trenches as narrow as 450mm.
  • Manual adjustment between 200/225/250/300mm can be easily carried out on site using a 30mm hexagon spanner.
  • At only 450kgs the cropper can be mounted to a minimum 6T Excavator
Spec Sheets

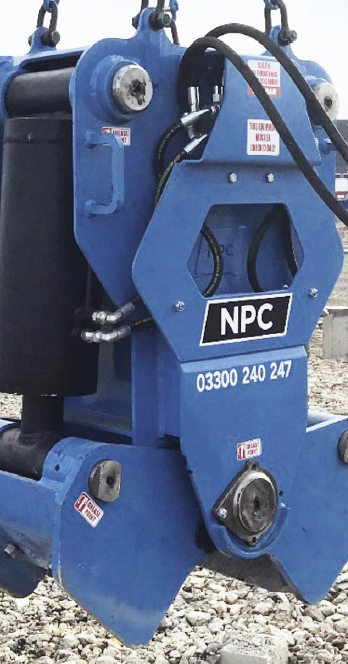

power cropper open

Power Cropper

Designed to be better than the rest, and it is by some way. Two very powerful rams ensure no pile up to 300mm will not be cut with ease by the two extremely hard wearing and fully scissoring jaws.

The Power Cropper can be used to reduce the piles in sections of 1m and more at a time, cutting straight through the reinforcement allowing the site to be cleared extremely quickly. Highly recommended for sites with a sea of piles requiring quick reduction to ground level.

Key Features
  • lighter, stronger materials keep the weight to 1Tonne and the dimensions small to enable easy movement around your site.
  • Hydraulic control boxes ensure the two jaws operate in complete unison giving you much less trimming work at finish level.
  • Due to its excellent control, the Power Cropper can also be used to reduce the pile in small sections leaving the rebar intact.
  • 1 Tonne weight – recommended excavator size 13T and above.
Spec Sheets

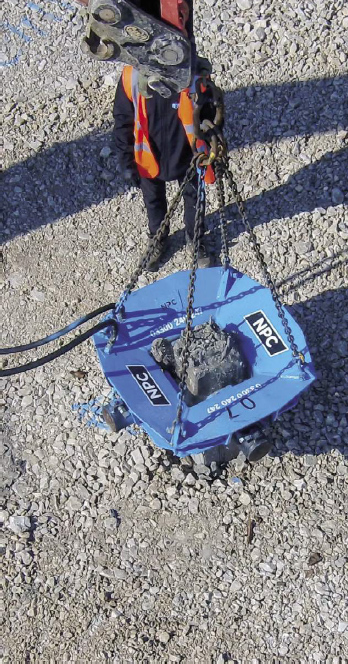

Multi bar cropper on a pile.

Multi-bar Cropper

An old favourite the Multi-Bar cropper as its name suggests is used for precast
piles (PCC ) with four or more reinforcement bars (rebar).
The cropper is designed to remove sections of concrete at approx 250mm per
crop, the 4 powerful rams and blades missing the rebar and penetrating into the
centre of the pile to leave a minimum of trimming
Not recommended for pile caps or tight sites – requires a 600 bucket dig all
around pile edge

Key Features
  • Only 450kgs the cropper can be mounted to a minimum 6T Excavator.
  • Designed to remove sections of concrete while missing the rebar leaving minimum trimming required
Spec Sheets
contig 450 600 cropper.

Contig 450 & 600 Cropper

As the name suggests, a cropper built with the purpose of reducing piles in a contiguous or secant wall formation where only two sides of the pile can be exposed and spaces between adjacent piles is tight.

Key Features
  • Two hydraulic rams mounted opposing at 180 degrees give you the ability to position the cropper over the wall to reduce the piles.
  • The wall thickness of the cropper allows it to slot between contiguous piles with spacing as close as 70mm.
Spec Sheets
Dual cropper in action.

Dual Croppers

Our Dual cropper is used to reduce any pre-cast concrete (PCC) pile with single or multiple reinforcement bars. The Dual cropper is used to expose the rebar to the finish level by nibbling down the pile at intervals of 250mm – 500mm.

Key Features
  • The cropper is narrow enough to fit into 600mm trench digs and tight spaces.
  • Versatile cropper giving a superb finish using the two cutting blades.
  • Recommended for sites where the multi-bar cropper is too large.
  • 800kg weight – minimum 8T excavators and above
Spec Sheets

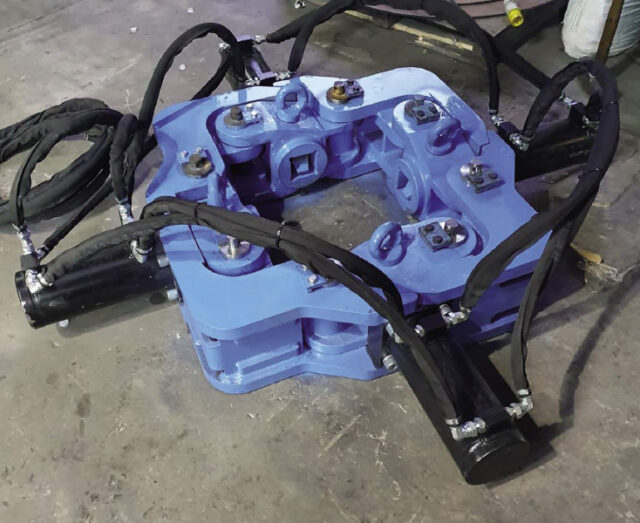

pre cast cropper on the ground

Pre-Cast 400 Cropper

Our newly designed cropper for piles from 300-400mm, as its name suggests is used for precast piles (PCC ) with four or more reinforcement bars (rebar).

The cropper is designed to remove sections of concrete at approx 250mm per crop.
Not recommended for pile caps or tight sites – requires a 600 bucket dig all around pile edge.

Key Features
  • At only 550kgs the cropper can be mounted to a minimum 6T Excavator.
  • 4 powerful rams and blades missing the rebar and penetrating into the centre of the pile to leave a minimum of trimming
Spec Sheets
